Tools and Strategies

Using the right tools and strategies is fundamental to mapping the electrical grid efficiently and accurately. The following strategies and tools will help you to extend existing transmission grid networks on OpenStreetMap. As a rule of thumb: The larger the towers and substations, the higher the voltage and the greater their relevance to the transmission grid. Priority should therefore be given to large, high-voltage infrastructure first. Please consider the following strategies and the associated processes as recommendations only. Ultimately, the most efficient strategy is the one that enables you to work on the electrical grid with passion and motivation over a longer period of time. The strategies can be divided roughly into two phases:

1. Pioneer Mapping Strategies: To ensure the power grid has the best possible coverage, we recommend beginning with Pioneer Mapping in each country. Several strategies are employed at this stage to identify the location of all lines, power poles, and substations. Rather than reducing issues in the grid, the main focus is on increasing coverage and extending the geographic information of the grid. This may result in an increased total number of issues in the grid. These strategies focus primarily on mapping the geographical location of power lines, towers, plants and substations, rather than technical grid details. They require good eyesight, fast mapping skills and an understanding of situations in which satellite data is insufficient for consistent grid mapping.

2. Technical Mapping Strategies: This phase involves solving more complex grid issues that require a fundamental understanding of the electrical grid. This includes mapping voltages, the number of circuits and routing issues. During this phase, the initial mapping work is validated against multiple sources to ensure its plausibility. These sources could include official maps from grid operators, statistics about grid length, and other official data. The main focus of these strategies is to minimise the number of complex quality issues in the grid.

Pioneer Mapping Strategies and Tools

Continue Open Lines

Continue Open Lines is the most efficent and most beginner friendly strategy. It is directly integrated in Map It📍. The strategy mainly depends on osmose, a quality assurance tool that detects issues in OpenStreetMap data on a daily basis. These include different power classes of issues, such as "unfinished power transmission lines" :

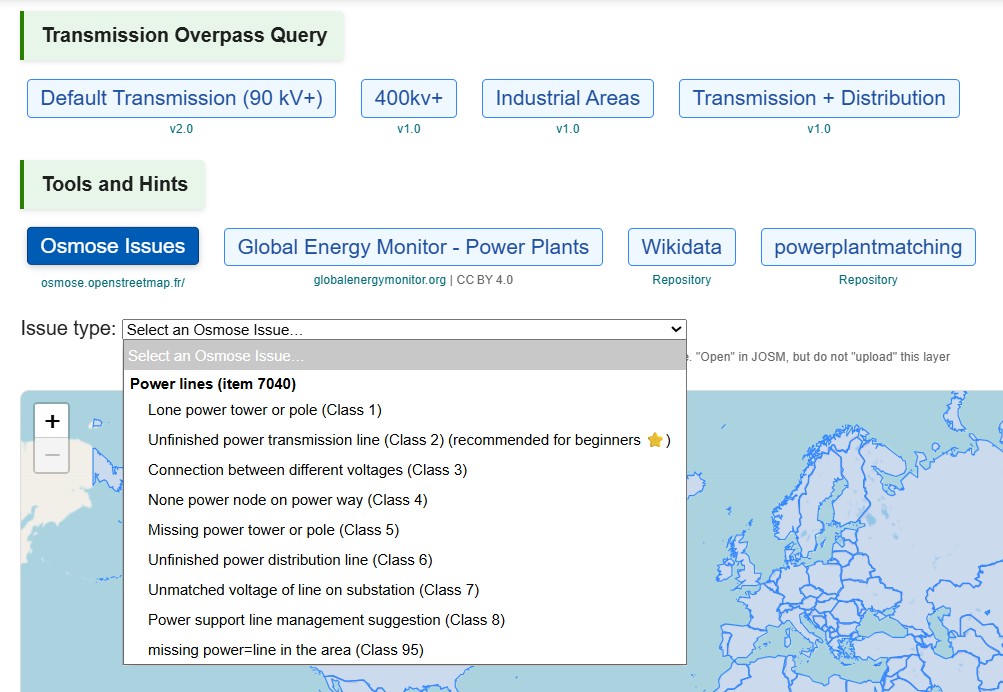

1. Select Unfinished power transmission line (Class 2) (recommended for beginners ⭐) from the drop-down menu, then click on the country or state you wish to map.
2. Now drag and drop the GeoJSON file you have just downloaded into you JSOM window.
3. Press CTRL+A to select all the location you have selected and press Add in the window of the todo list plugin.
4. Click on Default Transmission (90 kV+) in the Transmission Overpass Query selected and download the tranmission grid data into another layer in JOSM. Activate this layer.
5. You can now step through all issues by pressing Mark.

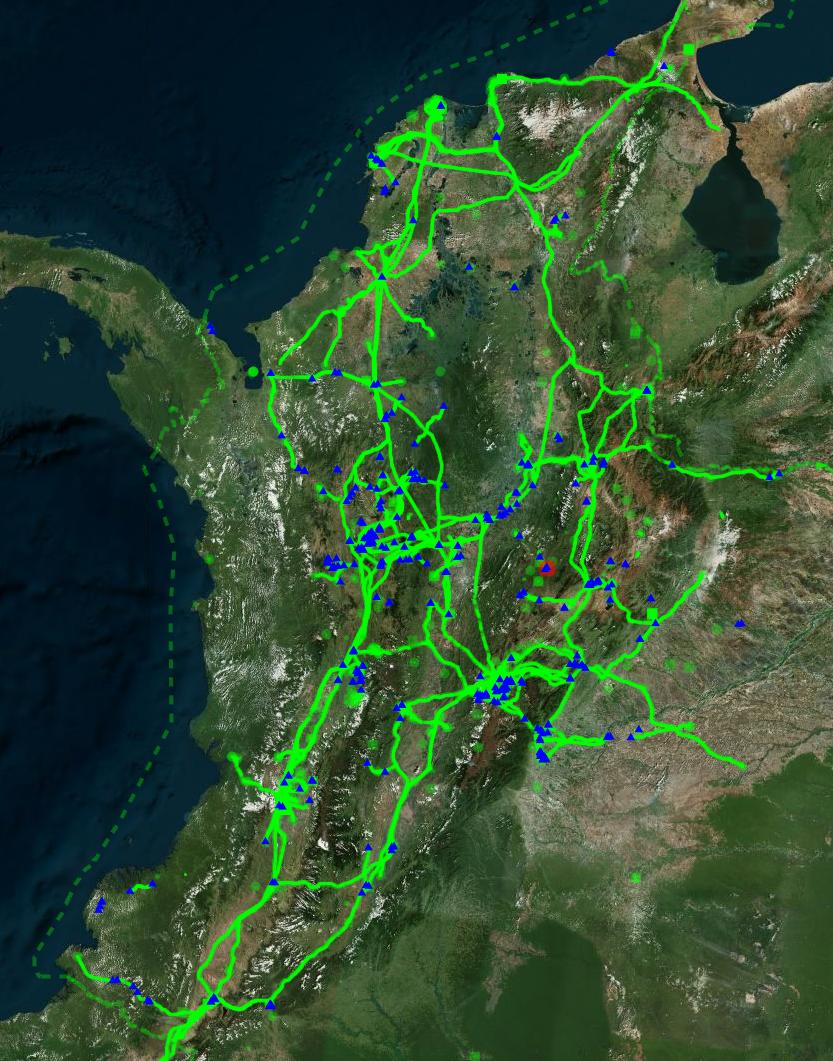

A simple but very efficient way of mapping the network is the continuation of “Unfinished Transmission Lines loaded into the todo plugin”:

Map Fast

If you want to be able to map efficiently and fast, you will need to know how to correctly place towers and power lines. This will save you loads of time:

1. Press A and draw nodes as you follow the towers. This will create a long line of untagged nodes, all connected by a untagged way.
2. Click on the way, and tag it as a power line.

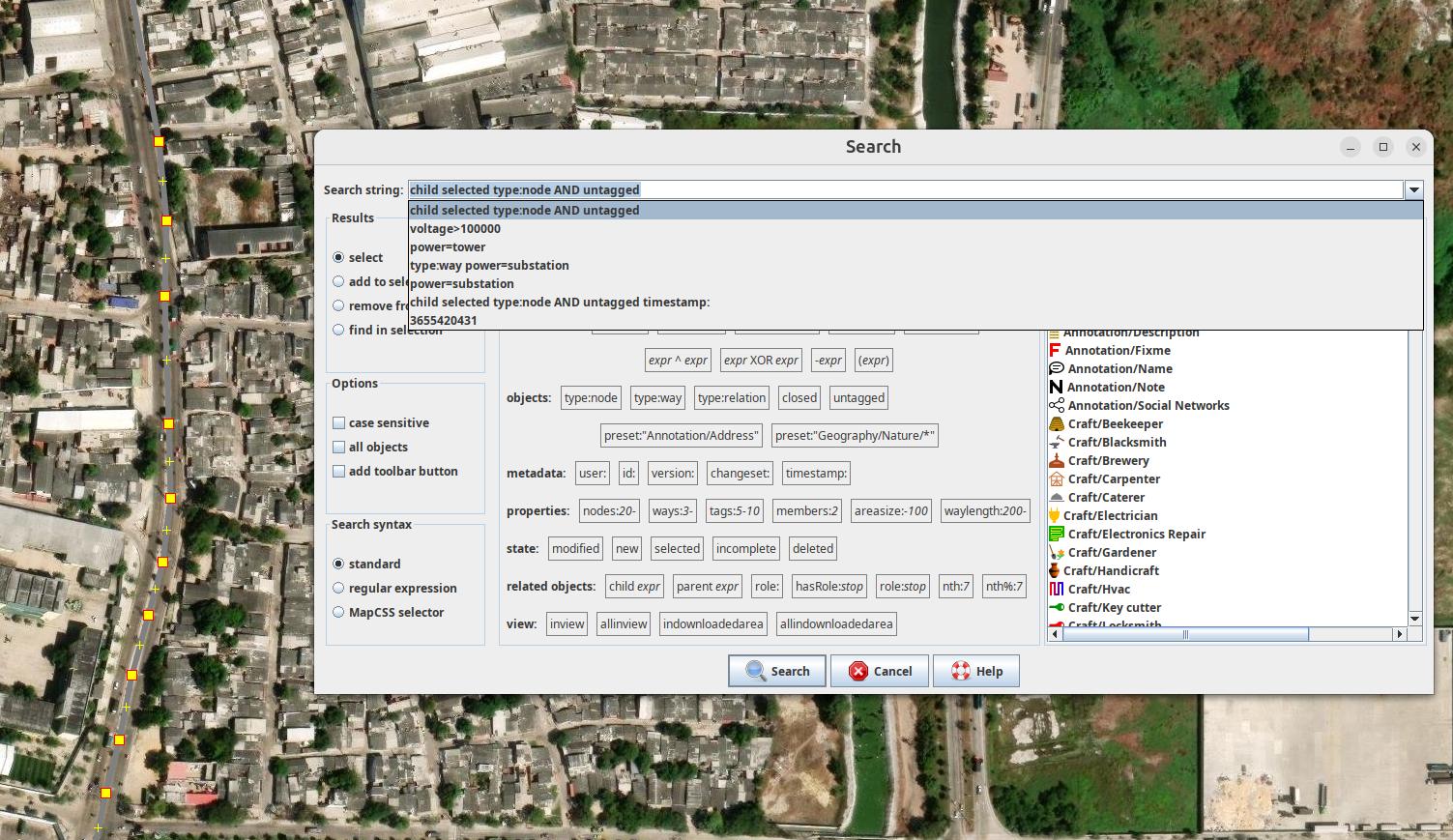

3. Click on the way again, and CTRL+F to open up search. Then paste as search string: child selected type:node AND untagged. This will select all untagged nodes of the way.
4. Then you can tag all the selected nodes as towers in one go.
5. Use the preset power tower or poles to set all nodes at once.
6. If you ever lose this query, click the right arrow on the search window and select it from your history.

Spot the Gaps in the Grid

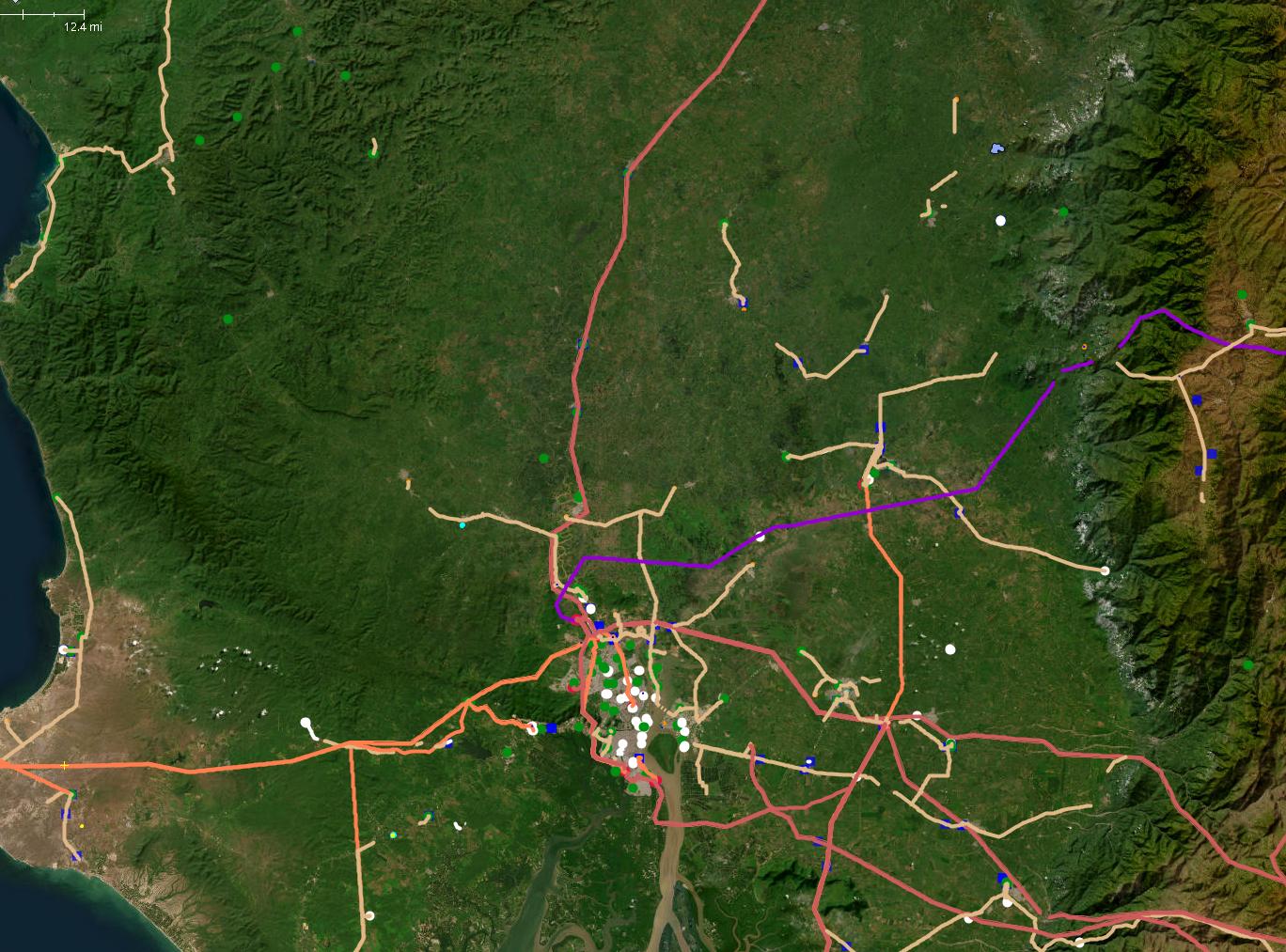

Outdated satellite data results in larger gaps in the grid across many regions of Ecuador. These gaps can be spotted by lines that end abruptly rather than in a round circle, indicating a substation..

Spot the gaps in the grid is a rather simple strategy but highly efficent. By using a bolt map coloring that highlights gaps in the grid and unconnected substation, is it easy to spot where are gaps in the grid. Unlike the 'Continue Open Lines' strategy, this approach is more flexible and relies on human judgement to address obvious topological issues in the grid. This allows us to prioritise lines extending or connecting new regions of the grid — lines with topological relevance, in other words.

As most transmission lines end at substations, the map painting technique allows us to mark the quiet lines that do not end at a substation with a circle. Zooming out allows the mapper to familiarise themselves with the gaps and nationwide coverage of the grid. If you haven't yet added our mapCSS to color the grid, you can find the recommended low-density grids map painting for this strategy here here.

1. We recommend using this MapCSS file for low-density grids and this one for high-density grids.
2. You can use ColorMyGrid, our MapCSS Generator tool, to easily adapt the MapCSS file to fit any special requirements you might have.
3. In the ColorMyGrid repo you will also find the raw data to edit the map legend.

Unfinished lines with Osmose and the todo Plugin

A simple but very efficient way of mapping the network is the continuation of “Unfinished Transmission Lines loaded into the todo plugin”:

1. Download the Unfinished Power Transmission lines (Class 2) via Osmose for your country.
2. Drag and drop the downloaded geojson file into JSOM.
3. Download the todo plugin for JSOM. Edit → Preferences. Search for todo, mark it and press OK. Press Windows → todo list to show the Todo list window.
4. Press CTRL + A to select all issues in the new layer. Press the Add in the todo plugin window (Windows → Todo list)
5. Switch back to the OSM data layer.
6. You can now systematically step through all the issues by pressing Mark.

Connect Power Plants

As most large power plants are directly connected to the transmission grid, Connect Power Plants provides an easy strategy using the comprehensive power plants dataset from Global Energy Monitor. A simple user interface for retrieving this data at a national level is integrated into Map It📍, enabling users to preview and download GeoJSON data:

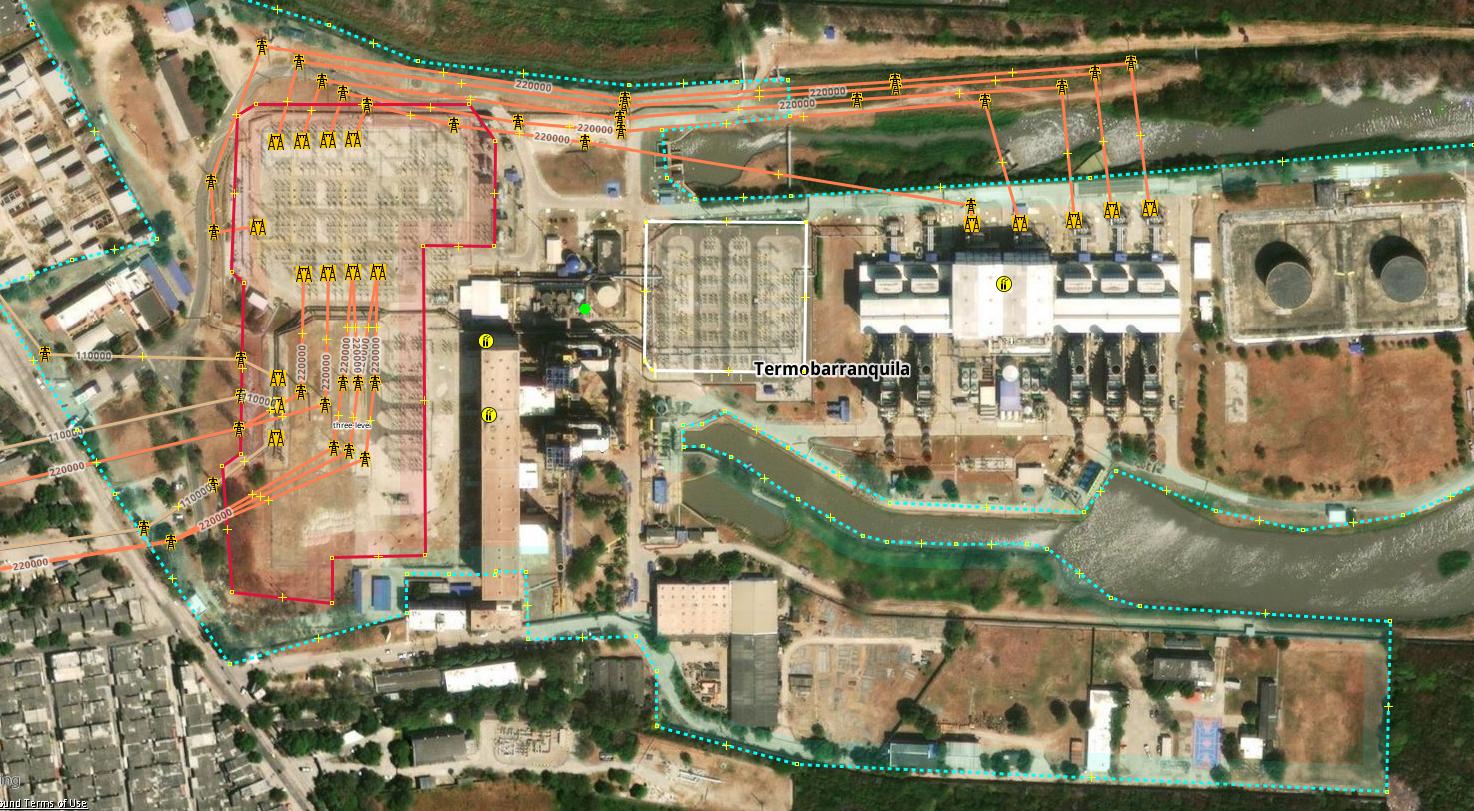

A power plant in Colombia is located close to a large substation.

1. Select 'Global Energy Monitor – Power Plants' as the hint layer and press the country you like to map.
2. Drag and drop the GeoJSON file you have just downloaded into your JSOM window.
3. Press CTRL+A to select all locations and click Add in the Todo List plugin window.
4. Click on Default Transmission (90 kV+) in the Transmission Overpass Query selected and download the tranmission grid data into another layer in JOSM. Activate this layer.
5. You can now step through all the issues by pressing 'Mark'.
6. If you find a power plant that is missing in OpenStreetMap, please map it too.

Connect Substations

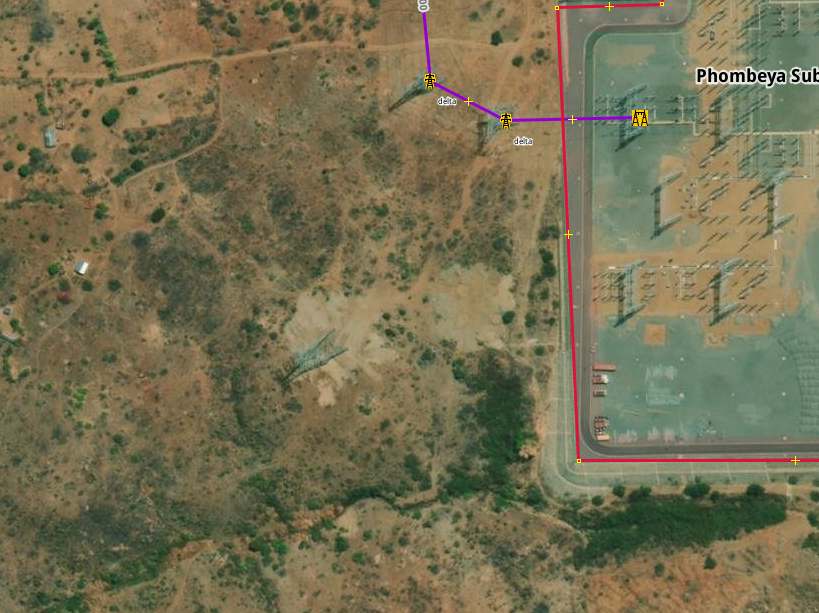

A substation in Malawi with an unmapped interconnector with the first tower in image center.

A simple yet efficient strategy for mapping the transmission grid is to check every substation for new lines branching out from it. As most national transmission grids are entirely connected, this strategy enables you to trace and therefore map the entire grid network. One single unmapped power tower can sometimes trace to a missing interconnector to another country as shown in the image of a substation in Malawi. Can you see the power tower that's missing from the bottom Left corner?

1. Download the transmission grid data of your country using the Map It📍 page.
2. Press CTRL+F and filter by power=substation.
3. With the installed todo plugin window press Add.
4. Switch back to your transmission grid layer.
5. You can now step through all substations by pressing Mark.

Connect Industrial Areas

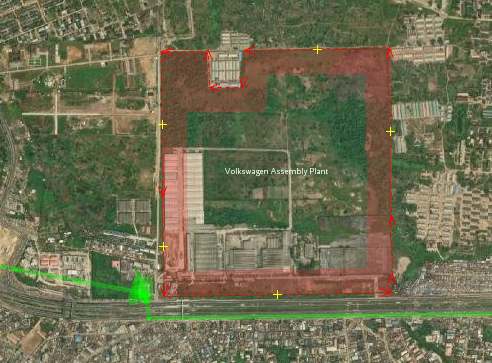

This industrial area in Nigeria is connected to the transmission grid via its own substation.

Large industrial facilities require huge amounts of energy and therefore have their own substations, and are sometimes even directly connected to the transmission grid. Stepping through all industrial areas can also reveal substations or power plants that are often tagged already as landuse=industrial. Try also to check the surrounding area too as substations are sometimes placed outside of the mapped industrial area.

1. Download the transmission grid data of your country using the Map It📍 page.
2. Download the industrial areas of your country using into a new layer using the Map It📍 page.
3. Press CTRL+F and filter by type:way landuse=industrial.
4. With the installed todo plugin window press Add.
5. Switch back to your transmission grid layer.
6. You can now step trouth all substations by pressing Mark.

Connect WikiData

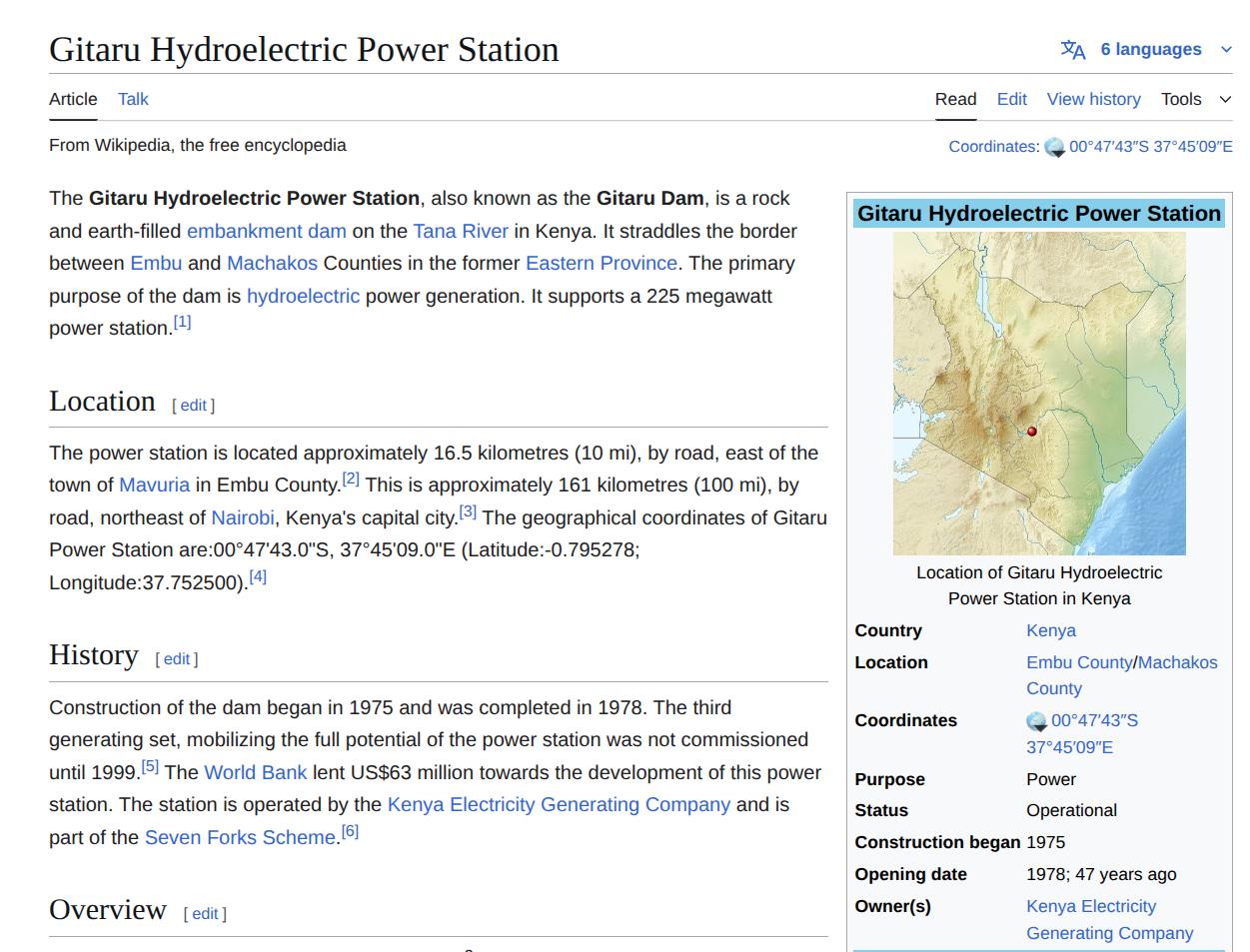

Wikipedia articles about power infrastructure, such as the Gitanga hydroelectric power station in Kenya, also provide location data that can be systematically accessed via WikiData.

WikiData provides access to Wikipedia articles about power infrastructure around the world. The Map It📍 page provides you a simple interface to extract this data for the country you would like to map. The osm-wikidata-comparison repository provides this data by identify missing or incomplete power infrastructure in OpenStreetMap by extracting structured data via the Wikidata API. It generates ready-to-use GeoJSON that can be opened in JOSM as a visual hint layer to guide new mapping work or improve existing tags.

1. Use the Map It📍 page to download the transmission grid data for your country.
2. Download your country's WikiData into a new layer using the Map It📍 page.
3. Press CTRL+A and click 'Add' in the 'Todo' window.
4. Switch back to your transmission grid layer.
5. You can now step through all WikiData entries by pressing 'Mark'.
6. If you spot any power plants or industrial areas missing, please also include these in your mapping.

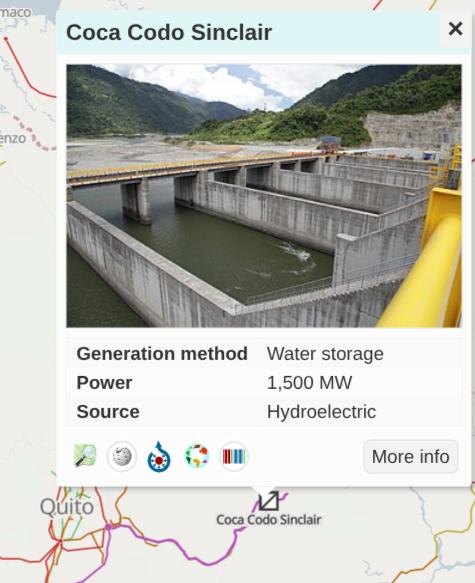

WikiData QID enables Open Infrastructure Map to link to databases like Global Energy Monitor.

Linking OpenStreetMap to WikiData

Linking other datasets to OpenStreetMap objects, such as power plants, can significantly enrich the data and help to avoid licence issues. Often, other data catalogues provide more up-to-date information about objects than OpenStreetMap. WikiData provides an excellent means of linking all these different data sources together in a standardised way. The datasets we provide will also include the WikiData QID (https://wiki.openstreetmap.org/wiki/Key:Wikidata). Adding these QIDs to OpenStreetMap objects greatly improves the quality and usability of data relating to power plants, substations, and interconnectors.

Technical Mapping Strategies

Offical Data and Maps

In order to map more effectively, it is recommended to use maps and datasets that can help you find missing power lines, substations and power plants. Most National transmission system operators provide publicly available maps, which can help you to estimate the coverage of the grid, and locate what is missing in OSM. Furthermore, having the names of substations can also help locate them. MapYourGrid provides a list of Curated Grid Maps, which contains datasets, maps, and documents for electrical grid all around the world.

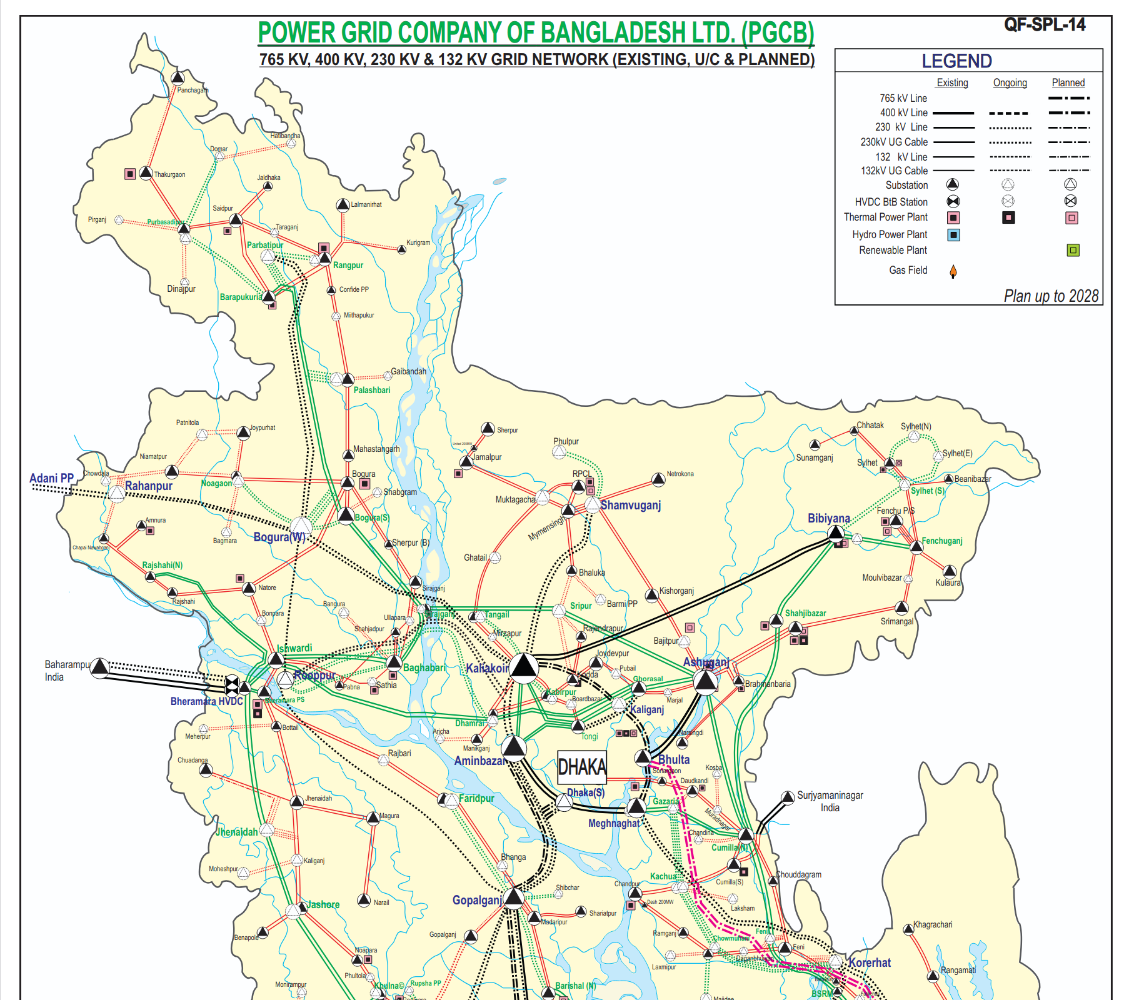

Offical transmission grid map of Power Grid Bangladesh PLC.

OpenData Plugin

The OpenData plugin will allow you to load all kinds of GIS formats directly into JOSM.

1. Download the OpenData plugin for JOSM. Go to Edit > Preferences. Search for OpenData, select it and press OK.
2. You should now be able to import much more data formats like (csv, xls, ods, kml, kmz, shp, mif) as another hint layer into JOSM.

OpenStreetMap and Verifiability

⚠️ Please use these datasets as hint layers. Do not copy/data from these maps directly into OpenStreetMap. Each data point of the transmission network must be set manually and verified with official satellite data provided by the OpenStreetMap community.

Searching and solving fixme tags

OpenStreetMap allows mappers to quickly mark an object that seems to be wrong and needs fixing using the Key:fixme tag. For example, you can write fixme=wrong voltage if you think the voltage on a line is incorrect, but you don't know the correct value. A small F will then be visible on the edge of the symbol to indicate the fixme tag. Stepping through all the fixme tags in a country is also a great way to search for errors in the grid that you can try to fix. We recommend using the todo list plugin for this.

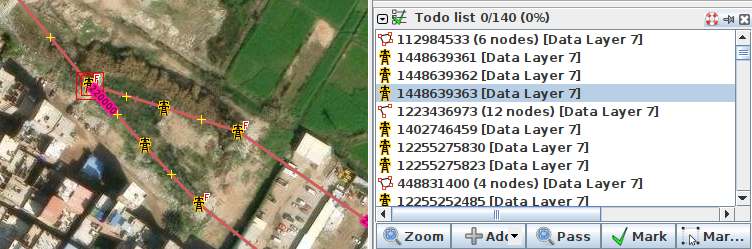

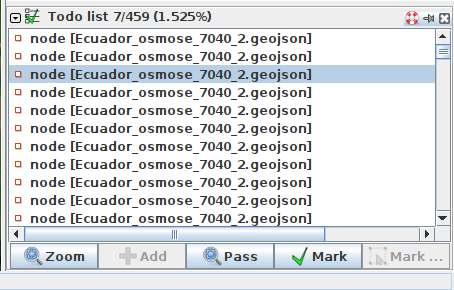

Fixme tags loaded in the todo list.

1. Download the grid you want to look into using at the Map It📍 page.
2. Press CTRL+Fand search for fixme=*.
3. In the todo list window press Add.
4. After you fixed and issues please remove the fixme tag.

Open Infrastructure Map - Nighttime Lights and Osmose

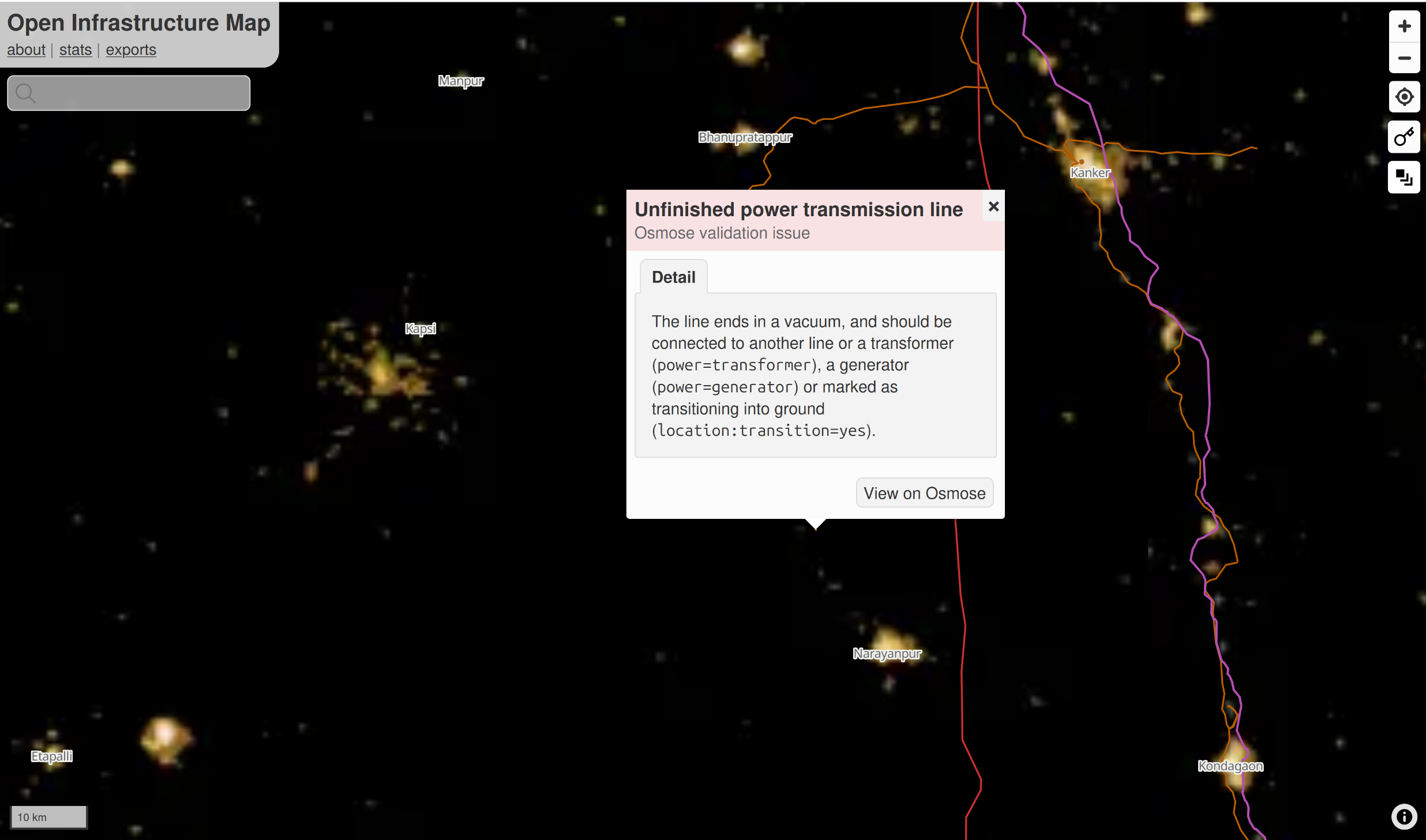

Open Infrastructure Map also includes the osmose issus in the grid as another layer.

1. Open Infrastructure Map can be used as a tool to map and find issues by utilising the nighttime lights feature.
2. Go to the website and set the background to nighttime lights. This can help see clear "holes" in a country's grid.
3. In layers, activate the power validation feature. If you zoom in and find an unfinished power line, you can see the osmose issue affiliated to this line.

Online Investigation

Searching for recent news articles, reports, academic studies or datasets related to newly operational substations and transmission lines is an effective way to find information about large-scale infrastructure projects that have just started construction or operation. As these facilities are of national interest, they are usually reported on in local news portals or on the websites of transmission grid operators. This is why there is so much news, articles and reports about new, large-scale substations, transmission lines and power plants starting operation.

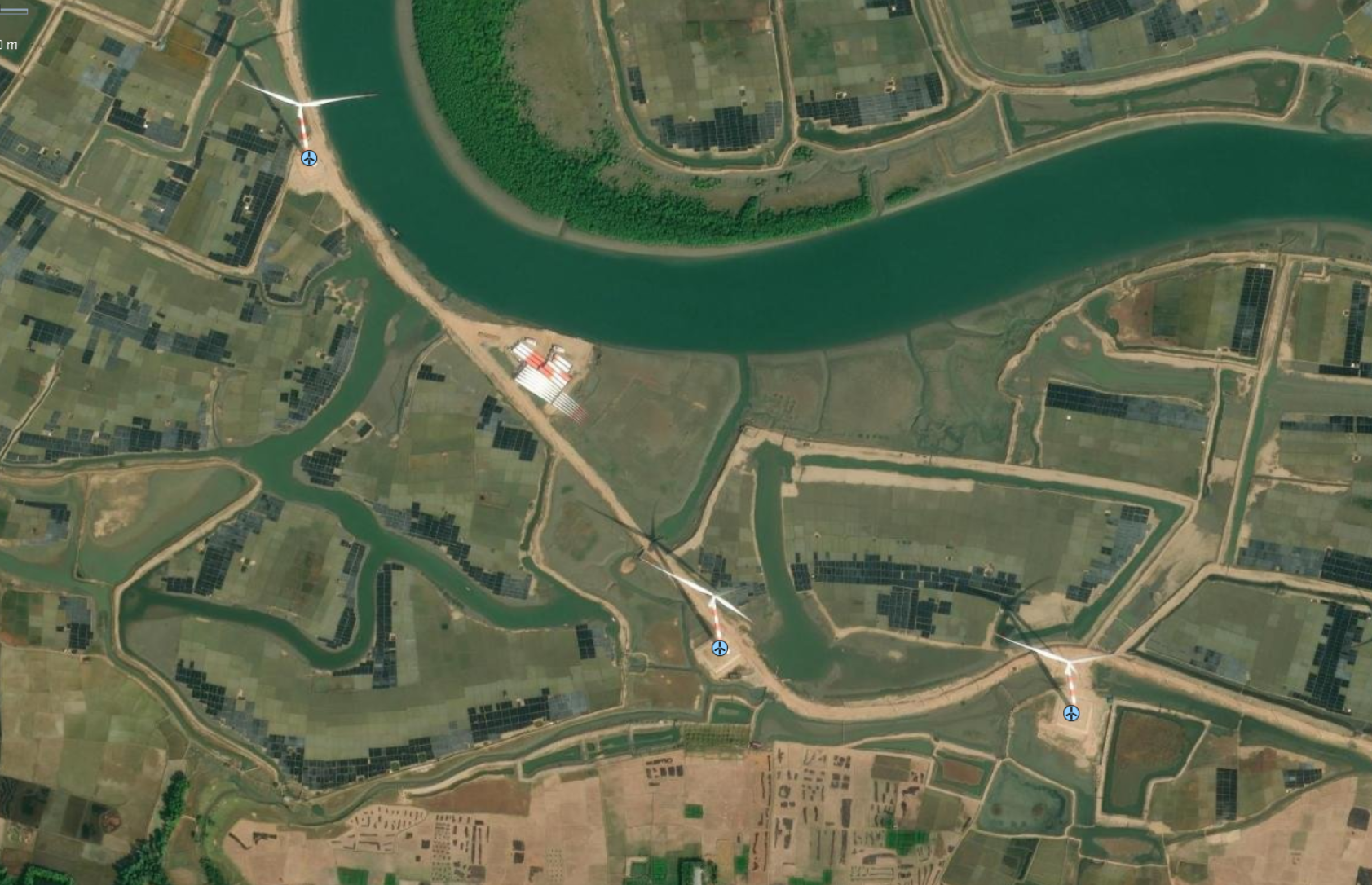

A wind farm in Bangladesh displayed in OpenStreetMap that has been discovered by offical documents.

Local Large Language Models (LLMs) can help by conducting searches in the country’s official language. For example: “Please search for news articles, reports, academic studies, or datasets about transmission lines or substations opened in Country A in the last 5 years. Use the official language of the country A. Only include resources not already listed in the Awesome Electric Grid Mapping repository.”

Please be aware of the licence and quality of the documents you are finding. If you cannot validate the information you find by different sources, you can at least use the names of substations, regions and towns to identify the locations of new substations or transmission lines, and verify their visibility in satellite images. The fastest way to search global power infrastructure like power plants, substations or country interconnector by name is by the search function of Open Infrastructure Map.

JOSM PowerNetworkTools Plugin 🔌

This tool estimates the voltage of a substation busbar from aerial imagery by measuring the clearance between conductors. The clearance is dictated by the voltage and so allows an estimate of the voltage to be made. Although not a perfect method, when combined with knowledge of a country's standard power grid voltages and power infrastructure layout this can greatly assist mappers in assigning voltages to power infrastructure from aerial imagery.

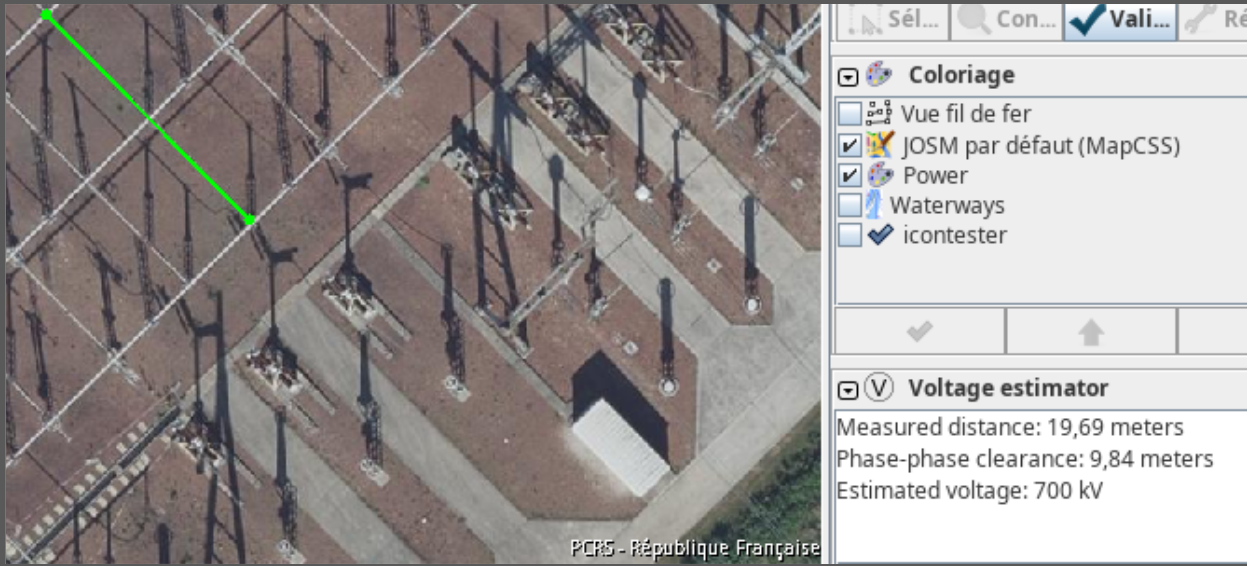

The OpenStreetMap Editor plugin that allows to roughly estimate the voltage levels based on phase to phase clearance measurements.

1. Download the PowerNetworkTools plugin for JSOM. Go to Edit > Preferences. Search for PowerNetworkTools, select it and press OK.
2. Activate the Volage Estimator in the Windows menu.
3. Press V to measure the distance between the two phases at the busbar.
4. Read more about how to use the plugin in the README of the official repository.

Validating and Mapping Interconnectors 📥

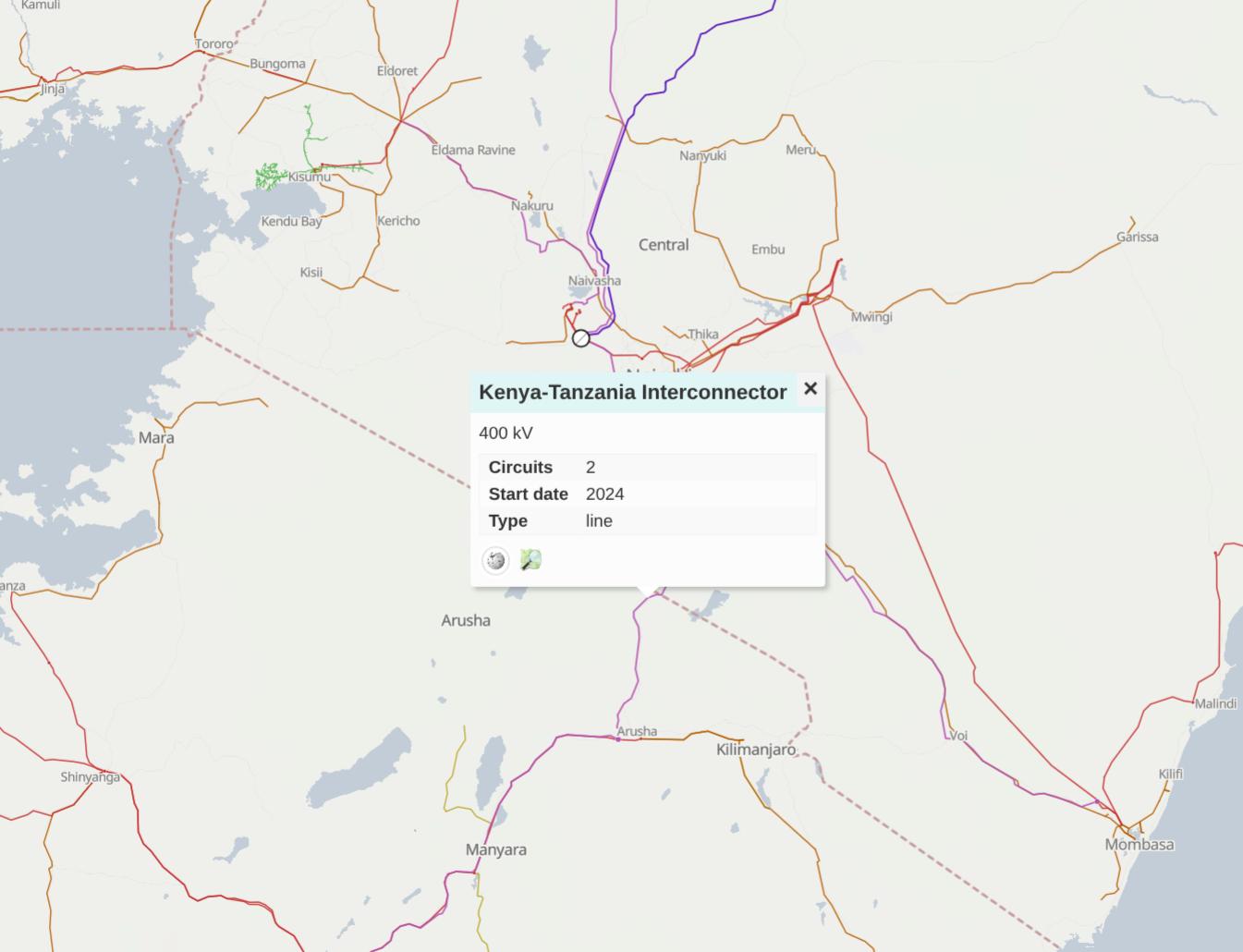

Interconnectors between countries are essential to the functioning of the transmission grid. Therefore, these lines should be regularly validated and carefully extended. If you are mapping an interconnector between two countries and want to see what’s mapped on the “other” side of the border, you can either do a quick Download from OSM in a new layer or use the following Overpass query:

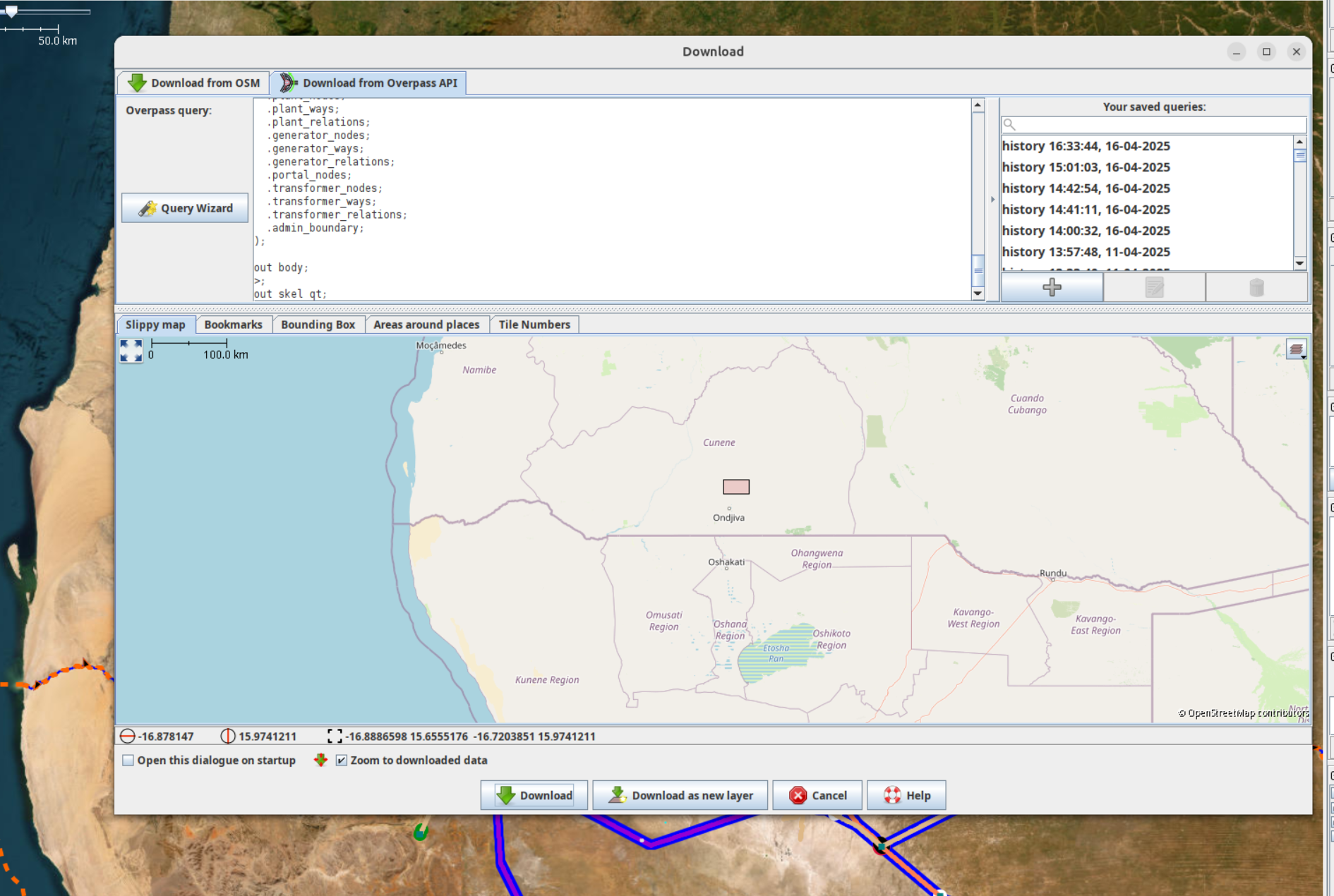

Overpass Query Example

1. Copy this query and paste it into “Download from Overpass API” in JOSM.
2. Draw a small bounding box in the slippy map, then run the query to download.

3. Explanation: The query finds nodes in your bounding box, detects their admin area (level 4 by default), and fetches all power infrastructure within it. You can adjust the “admin level” in the query (e.g. level 2 for national, level 6 for province) by editing the admin_level parameter in the download tab. A smaller bounding box is better (faster execution).

Improve OSM tags with PPM

Powerplantmatching (PPM) is a python repository designed to harmonize and combine power plant datasets from sources like OpenStreetMap (OSM) and Global Energy Monitor. It is widely used to prepare validated generation data for energy system models such as PyPSA-EUR. A new feature now fetches power plant data from OSM and flags all power plants and generators that are rejected due to incomplete or inconsistent metadata. These include elements missing a name, output:electrical, plant:method, incorrect unit formats, among others.

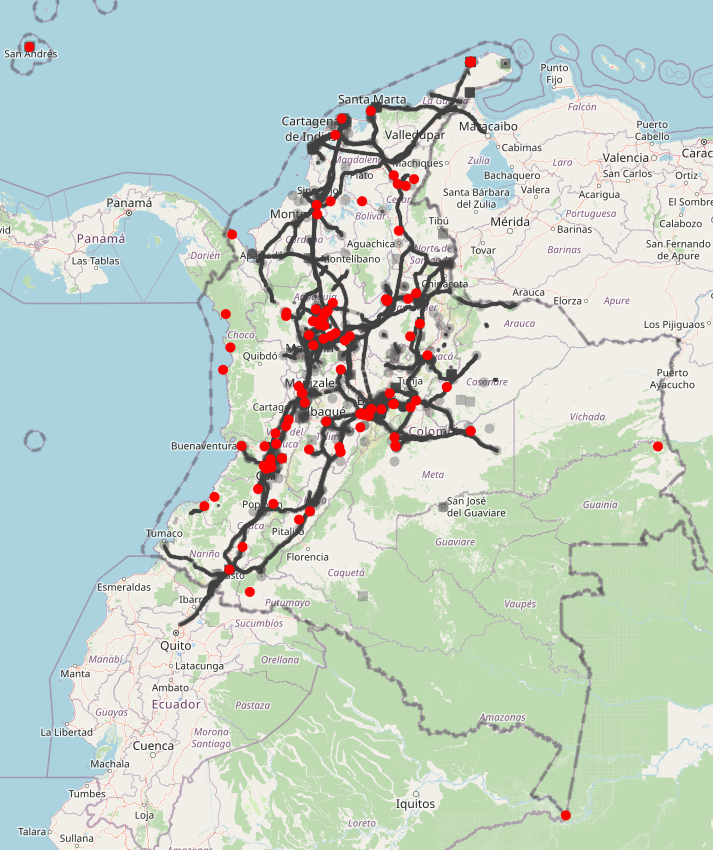

Power plants rejected by powerplantmatching due to missing metadata, displayed in red as a JOSM hint layer. In black, the power infraestructure grid from OSM.

You can access this data through our Map It📍 interface. Select the powerplantmatching button and click on any country to download a GeoJSON file listing rejected power plants. Once downloaded, the file can be opened in JOSM as a hint layer to help improve tagging. You can do this by reviewing the reason why the power plant was not considered and adding the missing data. For example, a common reason is the lack of a technology tag like plant:method=run-of-river or plant:method=reservoir on hydro power plants, or plant:method=wind_turbine on wind farms relations.

Follow the steps below to help improve rejected power plants in OSM:

1. Use the Map It📍 page to download the rejected power plant layer for a given country.
2. Open the GeoJSON file in JOSM as a new layer.
3. Press CTRL+A and click 'Add' in the 'Todo' window.
4. Switch to your OSM transmission or power layer.
5. Step through the rejected entries by pressing 'Mark' in JOSM.
6. Improve tagging to enhance the quality of OSM data.
